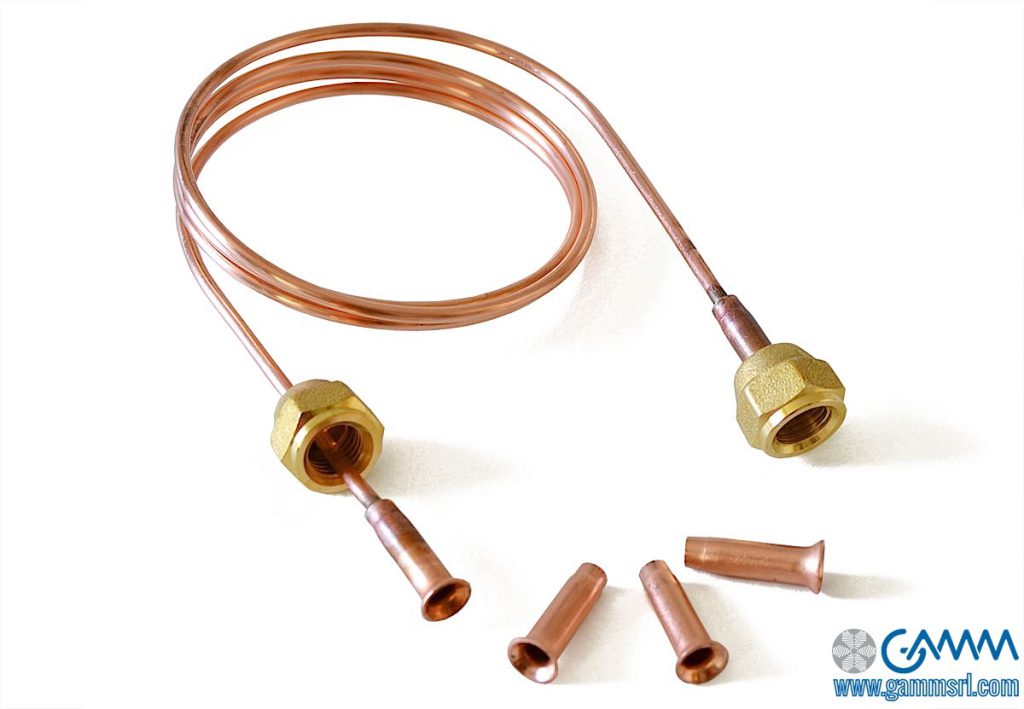

Our inlet capillaries are made of copper. They are equipped with forged brass union fittings in compliance with DIN 8912. This means that two sets of inlet capillaries are available: the first one has no slider and the other one has a slider that makes the inlet valve close during disassembling so as to prevent systems from emptying.
Materials Used:
Annealed copper pipe CU dhp EN 12449 1.63 x 2.9
Forged brass union fitting
Copper stub pipe
Copper valve opener Max. pressure: 45 bar.
CCA series has
We manufacture our valves in compliance with ARI STANDARD 720/97. They are equipped with a sealing cap or a blind union fitting with a copper seal to provide a tightening torque from 8.5 to 11.5 Nm
Data Sheet:
Brass valves bodies produced from hexagonal CW 614N bars
Mechanisms consisting of a stainless steel spring, an external Teflon seal and an internal hydrogenated nitrile rubber seal
Copper pipe with a ¼ and 5/16 ∅ cut with CNC machines equipped with cutting blades or orbital cutting system
Welding alloy: s86 according to ISO 3677 standard
Working pressure: 45 bar
Static pressure: 60 bar
Working temperature: from -30°C to +100°C
